Microsoft monitors Search queries - SP2

Windows XP SP2 SearchUrl hijack lock

Issue #1 - Microsoft may monitor every search from within Internet Explorer location bar.

Issue #2 - Protection against search url modification can be circumvented.


History (Insiders may skip)
Microsoft™ seems to have implented a new sort of protection against the "Browser Search Hijackers" a common practice amongst Spyware creators. Microsoft™ introduced a convenience feature in Internet Explorer which consist in the user simply entering a search term like "Widgets" into the URL location bar, once he presses enter Internet Explorer will try to resolve this address by DNS request and if it fails it will forward the search term to their MSN™ search engine which displays the search results for the term "Widgets" in the Browser.

Then paid search engine placement appeared and some search engine companies in need for visitors used the affiliate scheme to bring visitors to their individual sites. Now some aggressive affiliates tried changing the SearchURL location which Internet Explorer™ uses to search for keywords entered in the url location bar mentioned above. To do so they simply replaced a string in the registry and from there on they earn a small amount of money every time you search through the location bar and click on a result.

Details
This situation changed with Windows™ XP SP2, Microsoft™ has locked down the SearchURL modifications, they have done so by adding a PROVIDER key which identifies the Search engine provider. The Registry path where the key is saved is : \Software\Microsoft\Internet Explorer\SearchUrl

For instance the provider identification for Google™ is "gogl"

The provider keys I found by bruteforcing the provider parameter are: (gogl - Google, lyco - Lycos, yaho - Yahoo). There should be more but I stopped here rather then brute forcing through all characters.

When entering a search term in the URL location bar of Windows™ XP SP2 like "Widgets", Internet Explorer™ will first try to resolve the address "Widgets" and if it fails (it usually does except that there is a DNS entry for "Widget") it will forward the search term to MSN™ search with a parameter called "provider" and a parameter containing the search term itself. In case of "gogl", MSN™ search looks up the provider ID inside their allowed provider database and then redirects the HTTP call according to the destination URL saved in their database.

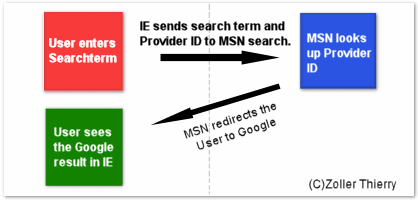

Functional scheme

  GET /response.asp?MT=SEARCHTERM&srch=3&prov=gogl&utf8 HTTP/1.1
Accept-Encoding: gzip, deflate
User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1; .NET CLR 1.1.4322)
Host: auto.search.msn.com
Connection: Keep-Alive
Cookie: MC1=V=3&GUID=xxxxxxxxxxxxxxxxxxxxxxxxx; smc_vid=xxxxxxxx;

HTTP/1.1 302 Moved Temporarily
Server: Microsoft-IIS/5.0
P3P: CP="BUS CUR CONo FIN IVDo ONL OUR PHY SAMo TELo"
Location: http://www.google.com/search?q=test
Content-Type: text/html; charset=utf-8
Content-Length: 152
Vary: Accept-Encoding
Date: XXX, XX XX XXXX XX:XX:XX XXX
Connection: keep-alive
Cache-Control: private

<html><head><title>Object moved</title></head><body>
<h2>Object moved to <a href='http://www.google.com/search?q=SEARCHTERM'>here</a>.</h2>
</body></html>





Issue #1 - Microsoft may monitor every search from within Internet Explorer™ location bar.
It is practically and theoretically possible for Microsoft™ to monitor and data mine search terms even when those are searched over Google or other Search engines if these search terms were entered in the url location bar. This is possible because the MSN server which redirects to google or to any other search engine knows about the search terms.

Issue #2 - Protection against search url modification can be circumvented.
Since microsoft owns this virtual DNS server for Providers ID's, it should be impossible for Browser Search Hijackers to modify the URL since they do not have access to the MSN search database of providers and can't modify the URL by simply manipulating the registry. However Spyware, Adware or their affiliates can practically overcome this limitation by adding an singly entry to the HOST file of the targeted computer. You can find the Hosts file in \systemroot \System32\Drivers\Etc.




A malicious example of a DNS entry in the HOST file.



In this case, Internet Explorer will instead of transmitting the data to auto.search.msn.com, transmit the data to the IP 66.150.196.177, the data is send to an ASP page in the form of "/response.asp?MT=test&srch=3&prov=gogl". We can now receive the data, either by writing an ASP script on our server and give it the name of response.asp or use Apache mod_rewrite to rewrite the URL to use a perl script. Either way we now have the data which we can forward to a pay-for-performance search engine using an Affiliate ID or choose to do otherwise.
